X108G | Xiegu

Xiegu » X108G

Mobile HF transceiver. Single-conversion receiver with frequency range 0.5-30 MHz, transmitter with 20 Watt max output power in 1.8-28.8 MHz ham-band. Simple operation with a minimum number of switches and controls. Ideated in P.R. of China, year of introduction 2015.

Reference market : ham-radio

General :
Frequency coverage RX 0.5000 ~ 30.0000 MHz
TX 1.8000 ~ 2.0000 MHz
3.5000 ~ 4.0000 MHz
5.0000 ~ 5.5000 MHz
7.0000 ~ 7.3000 MHz
10.0000 ~ 10.2000 MHz
14.0000 ~ 14.5000 MHz
18.0000 ~ 18.2000 MHz
21.0000 ~ 21.6000 MHz
24.8000 ~ 25.0000 MHz
28.0000 ~ 28.8000 MHz
Modulation mode CW / LSB / USB / AM
Tuning step 1 Hz min
Receiver :
Sensitivity SSB / CW 0.5 uV (0.5~2 MHz, preamplifier ON)
0.3 uV (2~30 MHz, preamplifier ON)
Selectivity CW 0.5 KHz (-6dB)
SSB 2.4 KHz (-6dB)
RF preamplifier Yes
RF attenuator 10 dB
Dynamic range 90 dB
Noise blanker (NB) Yes
RIT variable range ± 1 KHz
AGC Off, fast, slow (Selectable)
Frequency stability ± 0.5 ppm max after 5' warm-up with temperature from -10°C to +60°C
Intermediate frequency 10.7 MHz
Transmitter :
Output power SSB / CW 1 ~ 20 W
Spurious emission < -40 dB
Carrier suppression (AM) > 45 dB
CW features Manual/automatic Keyer
Features :
Memory Unspecificed regular memories
2 VFO
Display 10 Hz frequency resolution
24-segments signal meter bar
Antenna SO239 50Ω connector
Power supply 12~14.5 VDC external
13.8 VDC nominal
Power consumption 0.6 A RX, typ
7.5 A TX, max power
Audio power 0.5 W with an 8Ω load
Audio output Jack 3.5 mm external speaker
Connections USB (remote control / firmware update)
Jack 3.5 mm (CW keyer)
Socket (microphone)
Socket 6-pin (accessories)
Mechanical and environmental data :
Operating temperature from -10°C to +60°C
Dimensions 120 (W) x 45 (H) x 180 (D) mm projections not included
Weight 1kg

Description :

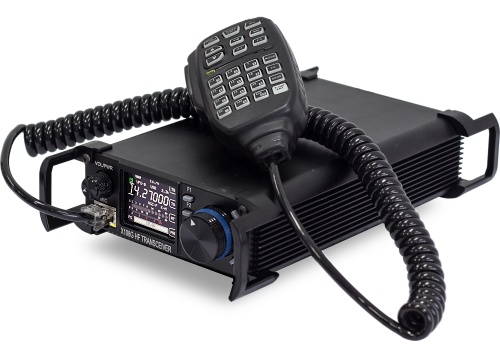

Mobile HF transceiver for outdoor or car operations. The X108G Xiegu, upgraded from X108, has 0.5~30 MHz general coverage receive capability. A Double balanced diode mixer is employed for the frequency conversion with 9 double tuned bandpass filters on the font-end covering all HF amateur frequencies including WARC bands. The transceiver is equipped with a minimum number of switches and controls on front panel for a easy use. Split frequency operations, the radio will receive on VFO-A and transmit on VFO-B. Standard 0.5 ppm TCXO as clock source. Narrowband 500Hz IF filter for CW. Noise blanker in 4 levels. Squelch. Build-in S-meter, power meter, SWR meter. The package includes hand speaker/mic with keypad. Front & rear handles.

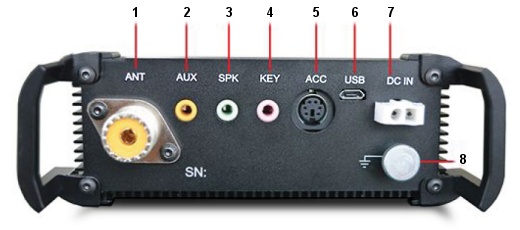

Rear pannel and connections :

Reference Description
1 Antenna connector SO239
2 Aux
3 External speaker output
4 CW key
5 Accessory socket
6 USB port
7 DC power socket, pin [+] on right side
8 Ground connection

6-pin accessory socket :

Socket Pin Description Specifications
1 [9 V] Regulated output 9 Volt
2 [PTT] PTT signal output -
3 [BAND] Band voltage output, varies with amateur band 1.8 MHz is 0.33V
3.5 MHz is 0.67V
7.0 MHz is 1.00V
10 MHz is 1.33V
14 MHz is 1.67V
18 MHz is 2.00V
21 MHz is 2.33V
24 MHz is 2.67V
28 MHz is 3.00V
4 [ALC] ALC voltage output -
5 [EXIN] External audio input -
6 [GND] Ground -
