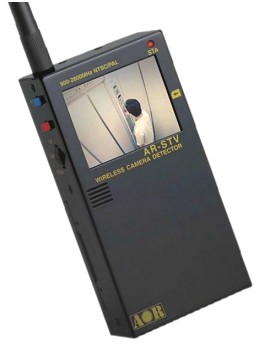

AR-STV | AOR
Handheld TV scanner with video recorder, frequency coverage 900-2800 MHz. All FM-carrier analogic video standards supported as used by hidden or wireless surveillance cameras. Ideated in Japan, year of introduction 2008.
Reference market : professional
|Frequency coverage||900.0000 ~ 2800.0000 MHz|
|Modulation mode||FM-Video PAL, NTSC, CCIR, EIA|
|Tuning step||User-defined 2~10 MHz with 1 MHz resolution|
-75 dBm (1200 MHz)
-80 dBm (2400 MHz)
|Intermediate frequency||1°||479.5 MHz|
10 regular memories
10 for programmed scan limits
|Display||Color LCD, 6.3 cm diagonal|
|Antenna||SMA 75Ω connector|
4.8 ~ 6 VDC battery (4 x AA alkaline or NiMh)
4.8 ~ 6 VDC external
460 mA display on
420 mA display off in search mode, battery save function on
Jack 3.5 mm (Video out)
Jack 3.5 mm (Relay out for alarm)
|Mechanical and environmental data :|
|Operating temperature||from 0°C to +50°C|
|Dimensions||67 (W) x 132 (H) x 33 (D) mm, without antenna|
the AR-STV is dedicated to the reception and display of video / TV signals transmitted by spy-bugs, wireless surveillance cameras, baby-monitors, radio-controlled drone board camera, illegal emissions, and so on. Integrating a color LCD display is able to show the captured video while an optional 4 GB SD-card can extract and store about 2000 images for documentation purposes. An internal clock allows you to add a reference with date and time to individual images. It is a scanner mainly aimed at securety operations but at the same time with performances that make it suitable for multiple situations. Other features: wide frequency range from 900 MHz up to 2800 MHz (S band) without interruption, compatible with all FM-Video in analogic standards. Also decodes scrambled signals with video polarity inversion. Other features: automatic search and tuning function, flexible double band antenna, USB port.
Performance and practical notes :
We remind those who are not familiar with the S-band video/TV emissions that part of the transmissions are still in analogue form and that there is no connection with the passage of terrestrial television to the digital system. It is in fact services completely different for objectives, users, technical needs.
