DR-CS25

Name: Alinco DR-CS25 radio
Brand: Alinco
SKU: DR-CS25
Price: 259.95 USD
Availability: InStock

Specifications

Prices

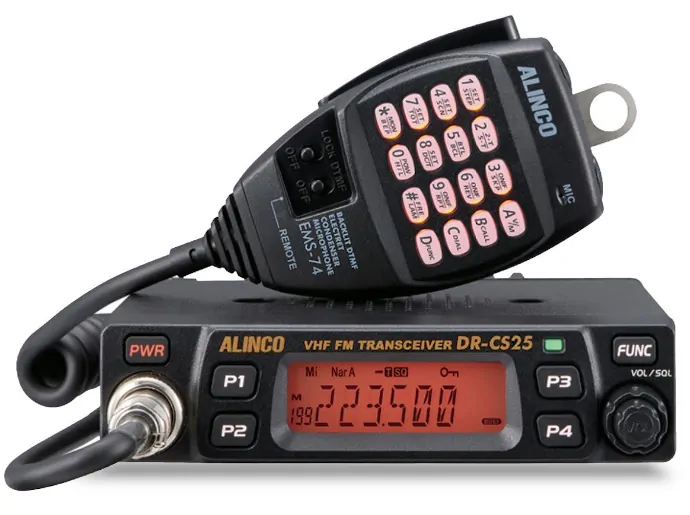

Compact 222 MHz FM base/mobile Transceiver. Output power selectable 50 / 20 / 10 Watt, PC-programmable 200 channels with Alphanumeric name tags, scan modes, wide / middle / narrow bandwidth. Wide variety of selective calling features built-in as 2-Tone, 5-Tone, 51 CTCSS, 1024 DCS, 4 Tone-burst tones, and DTMF / ANI decode. Radio stun / kill / revive functions. Multi-function, backlit microphone, enables direct frequency entry and more from keypads. Bright and color-selectable display. Functions of P1-P4 keys are programmable as you prefer by using the utility software. Ideated in Japan, year of introduction 2023.

Reference market : amateur-radio

DR-CS25 specifications

General

Frequency coverage
Receive	220.0000 ~ 259.9975 MHz
Transmit	222.0000 ~ 225.9975 MHz
Mode
FM
Tuning step
2.5 / 5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 KHz

Receiver

Sensitivity
<0.3 uV (wide) <0.35 uV (narrow)
Selectivity
>70 dB (wide, on adjacent channels) >60 dB (narrow, on adjacent channels)
Spurious rejection
>70 dB
Frequency stability
± 2.5ppm
Audio response
0.3-3.00 KHz (wide, +1~-3dB) 0.3-2.55 KHz (narrow, +1~-3dB)
Audio signal to noise ratio
>45 dB (wide) >40 dB (narrow)

Transmitter

Output power
50 / 20 / 10 W
Spurious emission
Out-of-band	<-60 dBc
Adjacent channels	<-68 dBc (wide) <-60 dBc (narrow)
Occupied bandwidth (FM)
16 KHz (wide) 11 KHz (narrow)
Audio response
0.3-3.00 KHz (wide, +1~-3dB) 0.3-2.55 KHz (narrow, +1~-3dB)
Audio distortion
<5%
Audio signal to noise ratio
>40 dB (wide) >36 dB (narrow)

Features

Memory
200 channels
Display
5-segments signal meter bar
Selective calling
2-Tone / 5-Tone 51 CTCSS / 1024 DCS 4 Tone-burst / DTMF and ANI decode
Antenna
PL/M 50Ω
Power supply
13.8V DC ±15%
Power consumption
0.6A max, RX 10A max, TX @ 50W
Audio power
2 W
Connections
8-pin (MIC) Jack (external speaker)

Mechanical and environmental data

Operating temperature
from -20°C to +60°C
Dimensions
140 (W) x 35 (H) x 180 (D) mm
Weight
0.91 kg

DR-CS25 standard accessories :

The Alinco DR-CS25 comes shipped with these items

DR-CS25 MIC-connector diagram :

The MIC-connector diagram, in the front view of connector

DR-CS25 price

We have collected for your convenience the Alinco DR CS25 sale price (US Dollar) and its trend over time. Useful to guarantee a cheaper purchase of this radio and to put it for sale in the second-hand market. Of course offers, accessories, warranty terms and conditions can lead to different figures.

Price	Date	Condition
USD 259.95	2023-oct	Brand-new
